How Does a Slitting Machine Work?

A slitting machine, also known as a slitter or slitter rewinder, is an essential piece of equipment in industries that deal with the processing of large rolls of material, such as paper, plastic films, textiles, and metal foils. The primary function of a slitting machine is to cut large rolls, or "parent rolls," into narrower strips, which can then be used for various applications or further processing. This process is crucial in converting raw materials into finished products that meet specific size requirements.

Components of a Slitting Machine

A typical slitting machine consists of several key components:

Unwind Unit: This is where the parent roll is loaded onto the machine. The unwind unit often includes tension control mechanisms to ensure that the material feeds into the machine smoothly and at a consistent speed.

Slitting Section: This is the heart of the machine, where the actual cutting occurs. The slitting section typically features rotating circular blades or razors that cut the material into the desired widths. The blades can be adjusted to different positions, allowing for varying slit widths.

Rewind Unit: After the material has been slit, the narrower strips, or "slit rolls," are wound onto new cores in the rewind unit. This section often includes tension control and alignment mechanisms to ensure that the slit rolls are wound evenly and without wrinkles or other defects.

Tension Control System: Throughout the slitting process, maintaining proper tension is critical. Too much tension can stretch or damage the material, while too little tension can result in uneven slits or poor winding. Tension control systems, often featuring load cells or dancer rollers, continuously monitor and adjust the tension to ensure optimal results.

Edge Trim Removal: During the slitting process, the edges of the parent roll may be trimmed off to ensure clean, even edges on the final product. These trimmed edges are typically removed from the machine using a vacuum system or edge trim blowers.

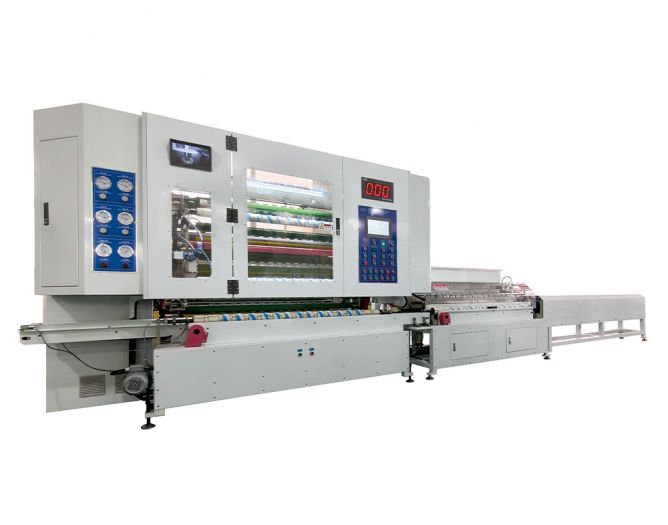

Tape Slitting Machine

How the Slitting Process Works

The slitting process begins with the parent roll being loaded onto the unwind unit. The material is then fed through the slitting section, where the blades or razors cut it into narrower strips. The positioning of the blades can be manually or automatically adjusted depending on the desired width of the slit rolls.

There are two main types of slitting methods: razor slitting and shear slitting.

Razor Slitting: This method uses sharp razor blades to cut the material. Razor slitting is typically used for thinner materials like plastic films or lightweight papers. It is a cost-effective method but may not be suitable for thicker or tougher materials.

Shear Slitting: Shear slitting uses a combination of rotating upper and lower circular blades that work like scissors to cut through the material. This method is ideal for thicker materials or materials that require precise, clean cuts, such as metal foils or heavy-duty papers.

As the material is slit, the individual strips are guided to the rewind unit, where they are wound onto separate cores. The tension control system ensures that each strip is wound with the correct amount of tension to avoid defects like wrinkles, telescoping, or core slippage.

Applications and Advantages of Slitting Machines

Slitting machines are widely used in various industries, including packaging, printing, automotive, and electronics, due to their ability to process a wide range of materials. Some of the primary advantages of using a slitting machine include:

Versatility: Slitting machines can handle various materials, from delicate films to heavy-duty foils.

Precision: They allow for precise cutting, which is essential for producing consistent, high-quality products.

Efficiency: By automating the slitting process, these machines can significantly increase production speed and reduce labor costs.

Customization: Slitting machines can be adjusted to produce custom slit widths, making them highly versatile for different production needs.

In summary, slitting machines are critical in converting large rolls of material into usable widths for further processing or final use. Their precision, efficiency, and versatility make them indispensable in many manufacturing sectors.
