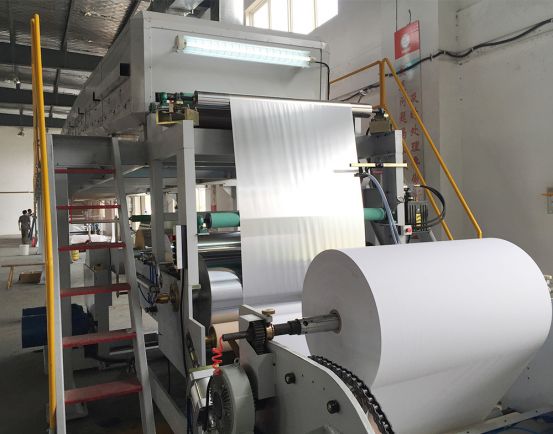

Tape Coating Machine Line
An Aluminum Foil Coating Machine is used to manufacture aluminum foil tape, which can be produced with or without liner paper. These machines apply adhesive coatings onto aluminum foil, allowing it to adhere effectively to various surfaces. Aluminum foil tapes find applications in industries such as HVAC (heating, ventilation, and air conditioning), construction, automotive, and aerospace for purposes like sealing, heat insulation, and moisture barrier.
The Aluminum Foil Coating Machine is designed for the efficient production of aluminum foil tape, which is used in a variety of industries such as HVAC, construction, automotive, and aerospace. This machine applies adhesive coatings onto aluminum foil, either with or without liner paper, ensuring the tape adheres effectively to multiple surfaces for a range of applications, including sealing, heat insulation, and moisture barriers.
The coating process involves precise adhesive application to achieve a uniform and strong bond. Depending on the application requirements, the machine can be customized to handle various widths and adhesive formulations, providing flexibility for different production needs. With high-speed capabilities, this machine is ideal for large-scale manufacturing, offering reliable, consistent output.
High-Efficiency Oven with Axial Flow Fan
The oven utilizes a high-efficiency axial flow fan, ensuring rapid drying and excellent heat distribution. The multi-section temperature control system allows precise temperature adjustment, ensuring optimal curing conditions for the adhesive.
Advanced Tension Control
Equipped with frequency conversion speed control or DC speed control, the machine uses a multi-point synchronization controller to maintain synchronized operation, preventing any slack or misalignment during the coating process.
Electronic Deviation Corrector
An electronic deviation corrector ensures that the finished product has neat, consistent edges by correcting any misalignment during production.
Compound and Rewetting Functions
The machine integrates compound and rewetting functions, providing versatility for different adhesive formulations and ensuring superior bonding performance.
Flexible Conveying System
The machine is designed with either a crawler belt conveying system or an oven roller with driving conveying, providing stable and reliable movement of the material throughout the production process.
| Model | GD-T600 | GD-T1320 |
| Valid width | 600mm | 1320mm |
| Machine maximum speed | 40m/min | 60m/min |
| Gluing and anti sticky | General | General |
| Coating type | Direct scrape coating, steel wire scrape bar | Direct scrape coating, steel wire scrape bar |
The Aluminum Foil Coating Machine operates by unwinding a roll of aluminum foil and applying a thin, even layer of adhesive onto the foil surface. The material then passes through a high-efficiency oven where the adhesive is dried and cured. The machine features an advanced tension control system to ensure consistent application, while the electronic deviation corrector ensures that the edges of the aluminum foil are clean and aligned. Finally, the coated foil is rewound into rolls, ready for further processing or use in final applications.
High Production Efficiency: Capable of handling high-speed production, the machine reduces cycle times and increases overall output.
Consistent Quality: Advanced temperature control and synchronization ensure a consistent and high-quality coating process.
Customization Options: The machine can be customized to suit various foil widths, adhesive types, and production volumes.
Energy-Efficient: The high-efficiency oven and precision control reduce energy consumption, optimizing operational costs.
Versatile Applications: Perfect for aluminum foil tape used in HVAC, construction, automotive, and aerospace industries.
HVAC Industry: Used for sealing ducts and insulation materials.
Construction: Ideal for moisture barriers and insulation tapes.
Automotive: Used in heat shielding and soundproofing applications.
Aerospace: For manufacturing aerospace-grade sealing and insulating materials.
Reliability: Built with high-quality components for long-term durability and minimal downtime.
High-Speed Production: Delivers fast, continuous production without compromising quality.
Flexible and Customizable: Adaptable to different adhesive formulations, production speeds, and foil sizes.
Cost-Effective: Energy-efficient systems help reduce operational costs while maintaining high output.
Looking to improve your aluminum foil tape production? Contact us today for more information on how the Aluminum Foil Coating Machine can enhance your manufacturing process. We offer customized solutions, competitive pricing, and excellent after-sales support.
Aluminum foil coating machine is a kind of equipment specially used for printing and coating on the surface of aluminum foil. Its main uses include food packaging, pharmaceutical packaging, tobacco packaging and other fields. Aluminum foil has good moisture resistance, oxidation resistance and heat insulation properties, so it is often used as a packaging material. The printing coating machine can print various patterns, texts or apply various functional coatings on the surface of aluminum foil to make it more attractive and practical, and meet the packaging needs of different industries.
The working principle of aluminum foil coating machine is to evenly apply ink or coating on the printing roller or coating roller, and then use the rotation of the roller to transfer the ink or coating to the surface of aluminum foil to form the required pattern or coating. During the coating process, the printing effect and coating thickness can be controlled by adjusting parameters such as roller pressure, speed and ink viscosity to meet the printing requirements of different needs. Aluminum foil coating machine is usually equipped with a heating system, which can accelerate the drying and curing of ink or coating and improve printing speed and quality.
When selecting, multiple factors need to be considered to ensure that the aluminum foil coating machine suitable for your needs is selected. The first is the type and specification of the printing coating material. Different types of inks or coatings require coating machines of different specifications to handle. The second is the production scale and efficiency requirements. It is necessary to select the appropriate equipment according to the expected production volume and printing efficiency. In addition, it is also necessary to consider the stability and accuracy of the equipment, as well as the convenience of operation and maintenance. Taking these factors into consideration, choosing an aluminum foil coating machine that suits your needs can improve production efficiency, reduce production costs, and thus gain greater competitive advantages.
This guide provides essential information on Aluminum Foil Coating Machines, including an FAQ section, maintenance and care tips, and advice on selecting the right machine for your needs.
1. What is an Aluminum Foil Coating Machine?
An Aluminum Foil Coating Machine applies coatings (such as adhesives, primers, or protective layers) to aluminum foil. These coatings improve the foil’s functionality, such as resistance to corrosion, heat, or wear, and enable specific applications like food packaging or insulation.
2. What industries use Aluminum Foil Coating Machines?
Packaging: Food, pharmaceutical, and cosmetic industries.
Construction: Insulation materials.
Automotive: Heat shields and sound-dampening components.
Electronics: Battery production and electromagnetic shielding.
3. What types of coatings are typically applied?
Heat-sealing adhesives
Primer coatings
Anti-corrosion layers
Heat and scratch-resistant coatings
4. What are the key features to look for in an Aluminum Foil Coating Machine?
High precision coating rollers
Adjustable coating thickness and speed
Energy-efficient drying systems
User-friendly control interfaces
Compatibility with multiple coating materials
Proper maintenance ensures the longevity and efficiency of your machine.
Daily Maintenance:
Inspect the machine for visible wear or damage.
Clean coating rollers and blades to prevent material buildup.
Check for loose screws, bolts, or other fasteners.
Weekly Maintenance:
Lubricate moving parts as recommended in the user manual.
Check and clean the drying system to maintain consistent heat output.
Test control panels and sensors to ensure proper operation.
Monthly Maintenance:
Inspect and replace worn rollers or blades.
Calibrate coating thickness and alignment settings.
Check electrical connections and circuits.
Annual Maintenance:
Perform a full inspection by a certified technician.
Replace consumable components such as filters, seals, or gaskets.
Review and update software or firmware, if applicable.
Selecting the right machine depends on your specific application needs.
1. Identify Your Coating Requirements:
What type of coating material will you use?
What thickness or coverage is required?
2. Determine Production Volume:
Choose a machine with suitable speed and capacity to meet production demands.
3. Assess Energy Efficiency:
Machines with energy-efficient drying systems and motors can reduce operational costs.
4. Consider Machine Versatility:
Opt for a machine that can handle different foil widths, thicknesses, and coating materials.
5. Evaluate After-Sales Support:
Ensure the manufacturer provides reliable technical support, spare parts availability, and training services.
