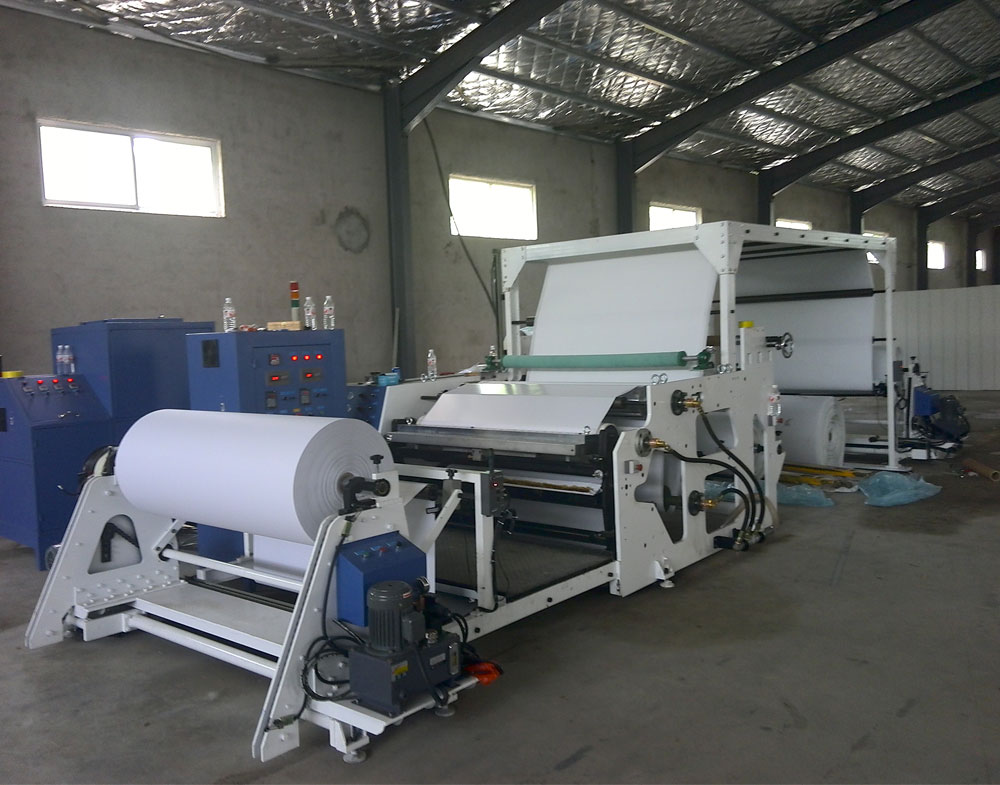

Hot melt tape coating machine

Feature:

1.No need drying equipment and it has the advantages of low consumption and high efficiency, low cost, small area.

2.Coating ways with compound functions are suitable for full and strip coating.

3.It is equipped with auto EPC device and the tension of rewinding and unwinding is auto controlled.

4.The frequency converter adopts stepless speed regulation and runs synchronously and stably.

Working craft for medical tape:

Process : coating and laminating

Release paper unwinding—coating hot melt glue on release paper—cooling

Non-woven paper jumbo roll unwinding—laminating with release paper(release paper is coated with glue)—rewinding

Specification:

Coating width: 1100mm

Coating quantity: 15-200g/m2

Coating speed: 50m/min

Coating roller length: 1500mm

Max unwinding diameter: 1000mm

Max rewinding diameter: 1000mm

Hot melt speed: 130kg/h

Glue pipe length: 3m

Temperature: 210 degree

Installation power: 35kw

Advantages:

1.We have 20 years experience for producing hot melt coating laminating machine.

2. We have done the export business for long times with good reputed.

3. Every step of production will be strictly controlled by our engineers.

4. Our engineer can maintain for you by oversea.

5. One year guarantee.
