Automatic Pre-Taped Masking Film Making Machine

Automatic Pre-Taped Masking Film Making Machine

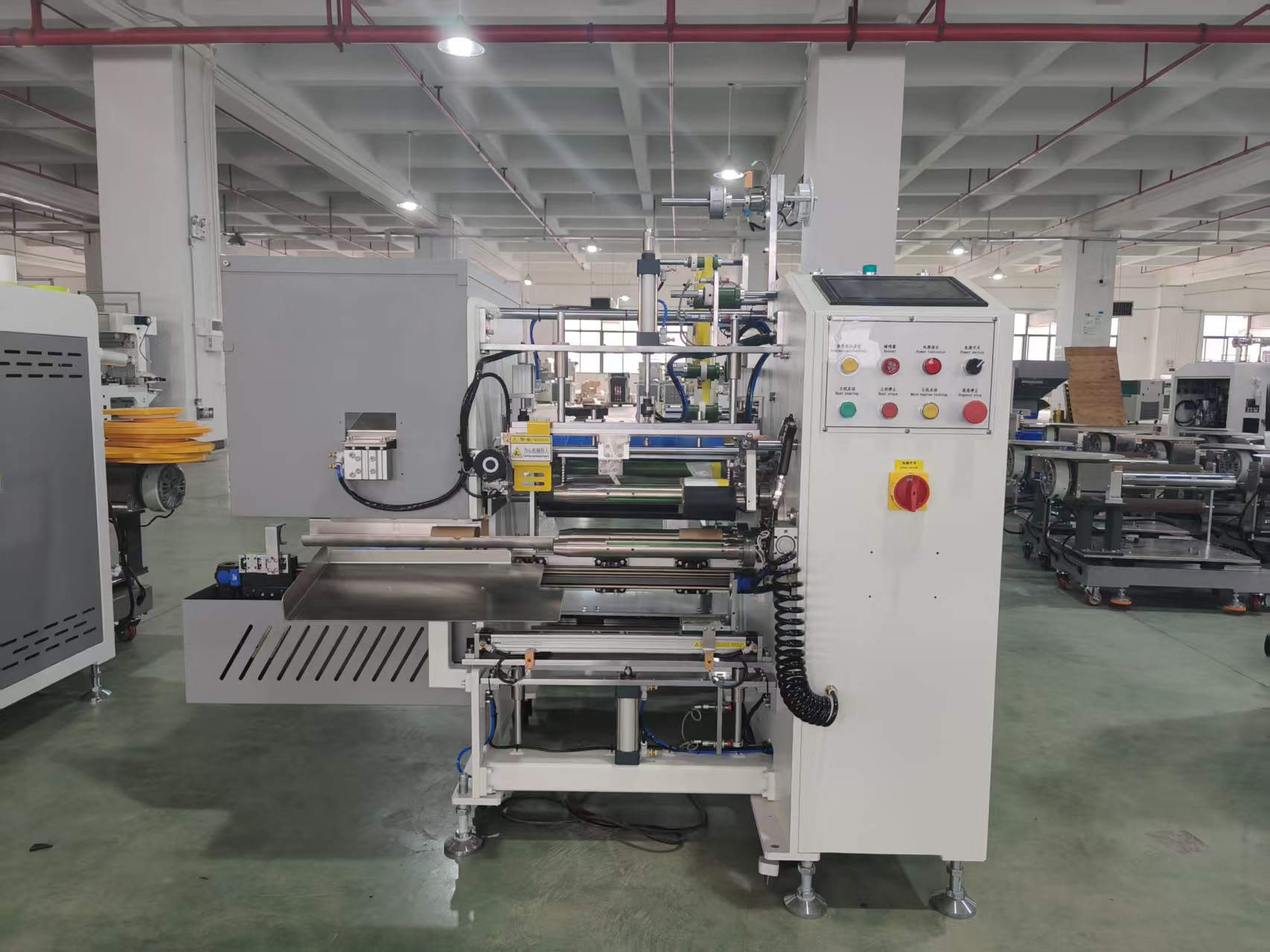

The SZT-350A Automatic Masking Film Machine is designed for laminating plastic film with masking tape and rewinding the finished pre-taped masking film into compact rolls.

It combines film unwinding, masking tape feeding, laminating, material pulling, edge correction, slitting, rewinding, cutting and automatic discharge in one production process.

The machine is mainly designed for pre-taped masking film converting, helping manufacturers produce ready-to-use masking film rolls for painting and surface protection applications.

Main Features

1. Servo-Controlled Laminating and Rewinding

The machine uses servo motors for material pulling, winding, shaft exchange and paper-core dropping.

The servo-controlled system provides accurate material feeding, stable winding tension and consistent finished rolls.

2. Automatic Tension Control

The film unwinding system uses automatic tension control to maintain stable tension during the laminating process.

This helps achieve smooth lamination and stable operation during machine start-up and stopping.

3. Automatic Rewinding

The servo motor controls the winding torque to provide stable and precise rewinding tension.

The finished rolls have a smooth winding surface and flat end face, improving the appearance and consistency of the final masking film rolls.

4. Automatic Paper Core Loading and Discharge

The machine can automatically perform:

• Paper core loading

• Paper core dropping

• Rewinding

• Cutting

• Roll finishing

• Finished roll discharge

This reduces manual operation and improves production efficiency.

5. Precise Material Length Control

The servo motor pulls the material and provides accurate length calculation, helping maintain consistent finished roll lengths.

6. Edge Correction System

The machine is equipped with an edge correction system to help keep the film and tape aligned during laminating and rewinding.

7. Tungsten Steel Circular Knife

A 40 mm tungsten steel circular knife is used for material slitting.

The blade is durable and provides clean and neat cutting results.

8. Automatic Material Detection and Alarm

The machine includes alarms and automatic stop functions for:

• No film

• No masking tape

• Material breakage

• No paper core

This helps reduce operating errors and protect the production process.

Pre-Taped Masking Film Production

It can be used to produce pre-taped masking film, where masking tape is laminated to PE/film and rewound into finished rolls.

Typical applications include:

• Automotive painting masking

• Car body painting protection

• Surface masking

• Painting protection

• Construction masking

• General surface protection
