Tape Slitting Machine
Fully automatic BOPP tape slitting machine adopts six-shaft exchange,equip with dual servo mechanical arms which can load and unload finished product shafts automatically,automatic core arrangement, automatic mould opening and shafts conveying, automatic labeling and transverse cutting, achieve automatic finished product and core bottom smoothing function.
Introduction：
The GD-660 is a fully automatic 6-shaft tape slitting machine designed for high-volume adhesive tape production. Equipped with robotic arms, auto paper core loading/unloading, automatic labeling, and smoothing functions, it delivers a complete intelligent slitting line for BOPP, masking, duct, and other adhesive tapes.
Technical Specifications：
Machine width:1300/1600mm or customize
Max slitting width:1280/1580mm
Max unwinding diameter:600-800mm
Inner diameter of jumbo roll:3” or 6”
Paper core ID:φ76.2mm
Max speed:320m/min
Relevant safety regulation:Machine design complies with CE safety standard
Machine weight:8000kg
Machine size:L 8250*W 4000*H 2200(mm)
Max finished tape diameter:90-200mm ( 6 shafts exchange)
Machine voltage:380V-50HZ 25KW ( depends on customers)
Air source ( prepare by customer):0.5～0.6MPa (5kgf-6kgf)
Customer Cases：
Our customer in Indonesia is a large adhesive tape manufacturer, specializing in BOPP and masking tape production. With increasing demand in the Southeast Asian market, they needed a faster, more efficient, and fully automated solution to replace their older semi-automatic machines.
Before upgrading, the customer faced:
• High labor costs (multiple operators required for each line)
• Frequent downtime during shaft changing
• Inconsistent slitting precision, causing waste and rework
We supplied and installed two GD-600 fully automatic 4-shaft slitting machines at their factory. The machines are equipped with:
• Automatic shaft exchange (no downtime)
• PLC precision control system
• Automatic paper core loading and unloading
• Finished roll smoothing and labeling functions
After installation and on-site commissioning by our engineers:
• Production speed increased by 20–30%
• Labor reduced by half (1 operator can run the line)
• Slitting accuracy stabilized at ±0.1 mm, minimizing waste
Customer feedback:
“The fully automatic machines from Goodi helped us double our efficiency. Our workers can now manage production with less effort, and the product quality is more consistent.”
Shijiazhuang Goodi Trade Co., Ltd
• 20+ years experience in adhesive tape machinery.
• Exported to multiple countries worldwide.
• Comprehensive after-sales service: installation, training, spare parts, warranty.
• we offer you a solution that integrates perfectly into your production process
Ready to upgrade your tape production?
Direct Contact Info:
• Email: info@goodijx.com
• WhatsApp/WeChat: +86 151 2718 2812
Finished Tape
| Machine Width | 1.3M 1.6M |
| Max Unwinding Diameter | 800mm |
| Max Rewinding Diameter | 6 shafts exchange :80-200mm |
| Machine Speed | 0-300M/min |
| Razor | 0.2x22x60mm |
| Main Motor | 10KW |

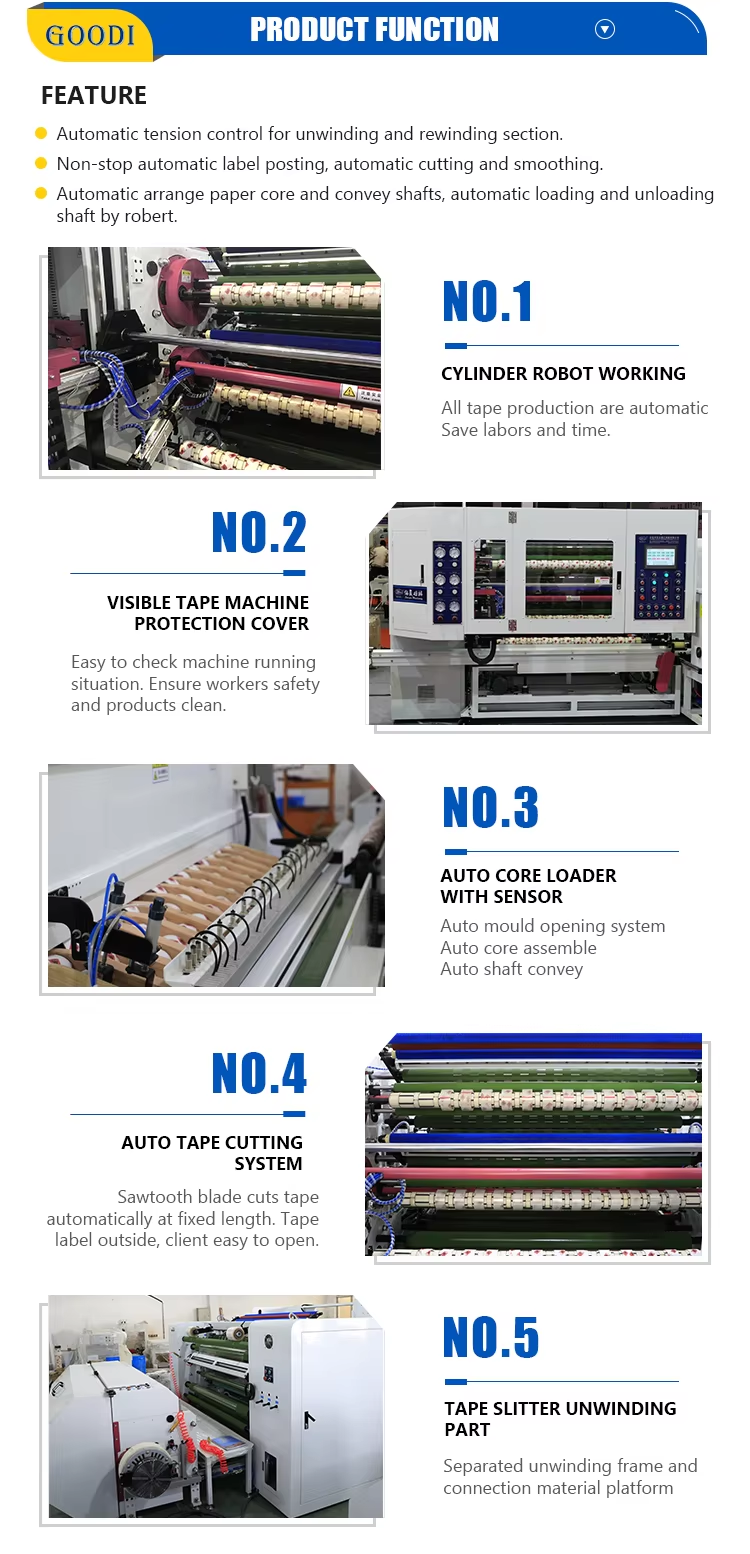

CYLINDER ROBOT WORKING
All tape production are automatic
Save labors and time.
VISIBLE TAPE MACHINE PROTECTION COVER
Easy to check machine running situation. Ensure workers safety and products clean.
AUTO CORE LOADER WITH SENSOR
Auto mould opening system
Auto core assemble
Auto shaft convey
AUTO TAPE CUTTING SYSTEM
Saw tooth blade cuts tape automatically at fixed length. Tape label outside, client easy to open.
