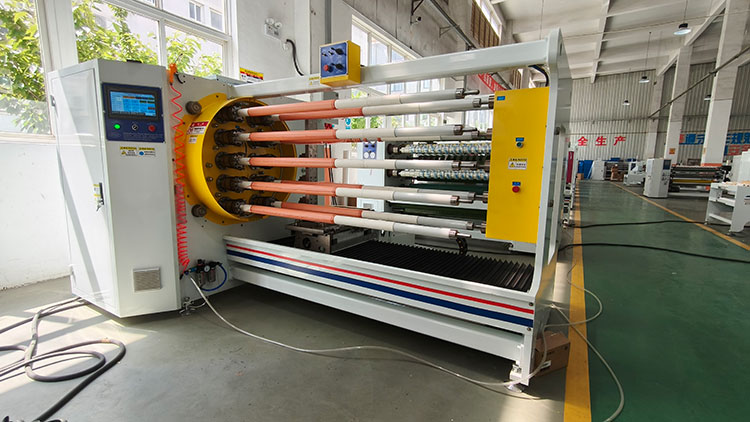

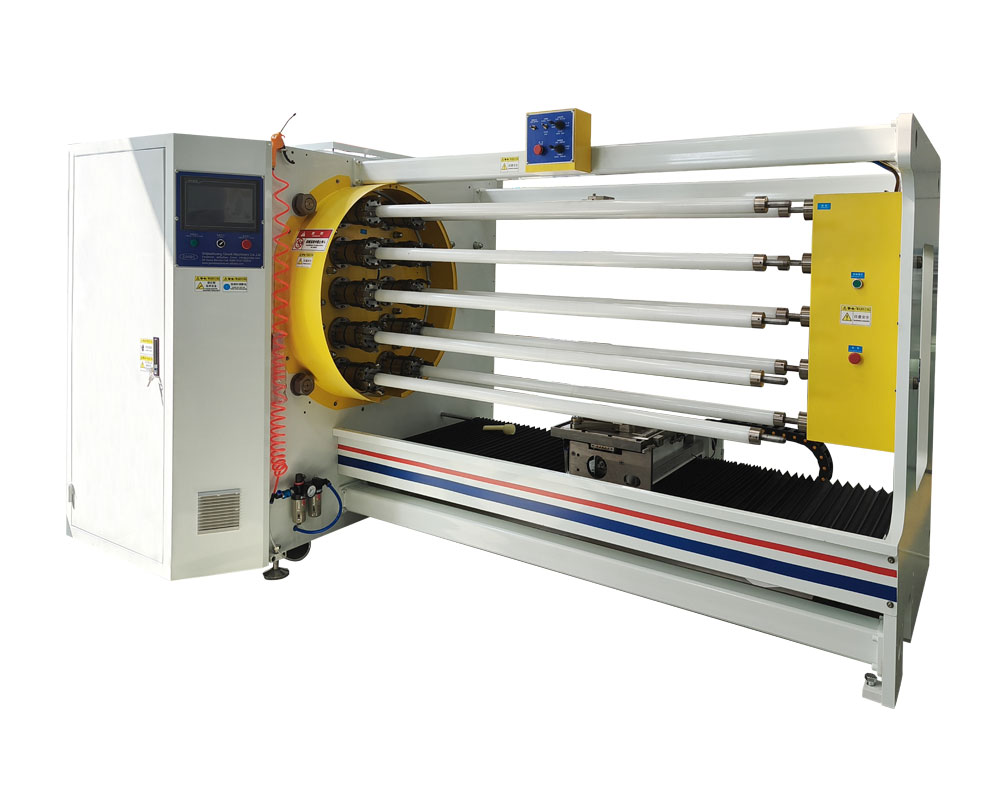

GD-710 ten shafts adhesive tape cutting machine

Introduction:

The GD-710 is a high-performance ten-shaft fully automatic tape cutting machine. Designed to slit a variety of tape materials such as BOPP, PVC, PE, masking tape, medical tape, foam tape, and more. It uses PLC + touch-screen interface, supports auto cooling spray, angle adjustment, servo positioning, linear slide track, and more, ensuring fast, precise, and stable cutting.

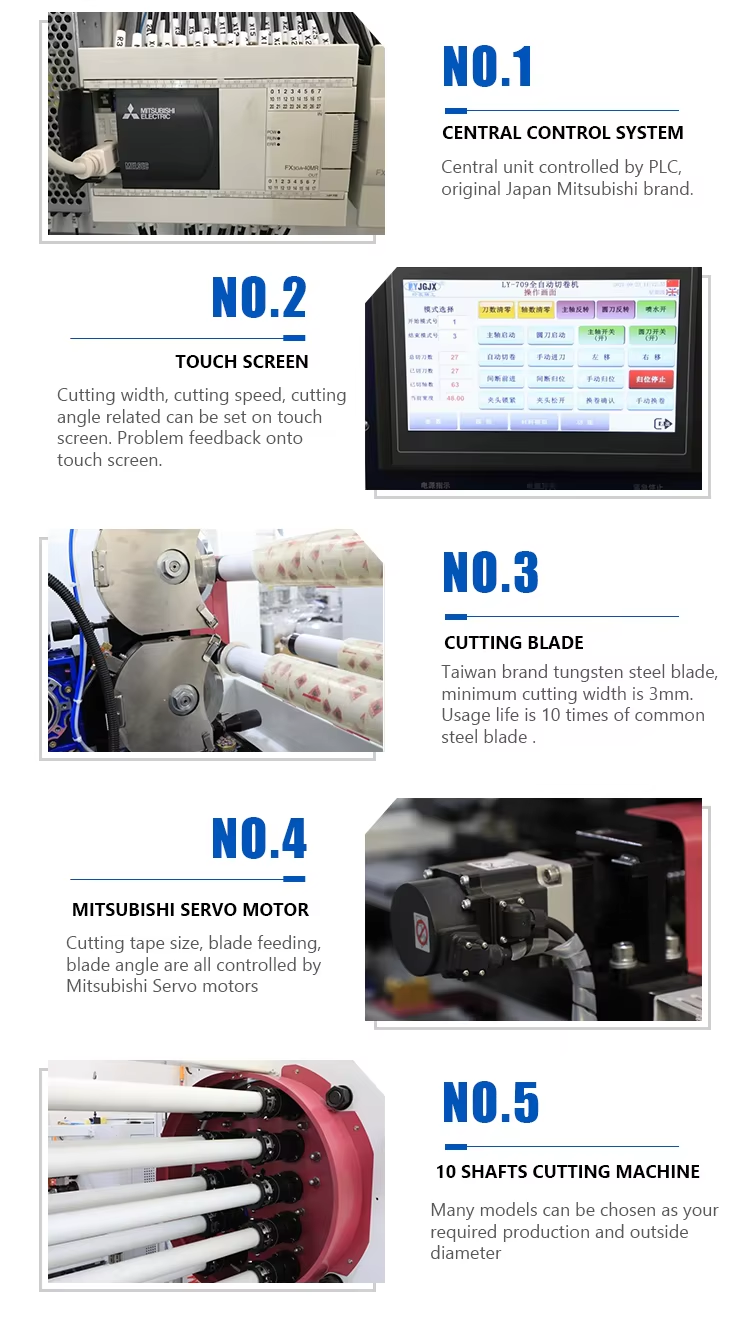

Features:

1.Automatic control of PLC system with LCD touch screen control panel, 20 modes for size setting each time & auto changing when cutting. Easy function setting, user-friendly interface.

2. Auto liquid silicon water spray cooling system: to avoid the adhesive sticking on the blade and ensure the smooth cutting.

3. AC motors for cutting blade and cutting shaft with inverters speed changing.

4. Positioning system for cutting: servo motor to control more accurate position.

5. Sliding system,high precision liner sliding track and ball screw.

6. Auto cutting angel adjustment ±8° can well protect the cutting blade as well as guarantee the cutting edge flatness.

Specification :

1. width of cutting shaft: 1300mm

2. cutting width: 1-1300mm

3. core ID: 25.4mm

4. Circular knife diameter: 180-200 mm

5. Max cutting diameter; 150mm

6. Cutting speed: 0-35 cuts/min

7. Paper core diameter: 38mm , 76.2mm

8. voltage: according to your local industrial voltage (50HZ 3 Phase)

Customer Cases:

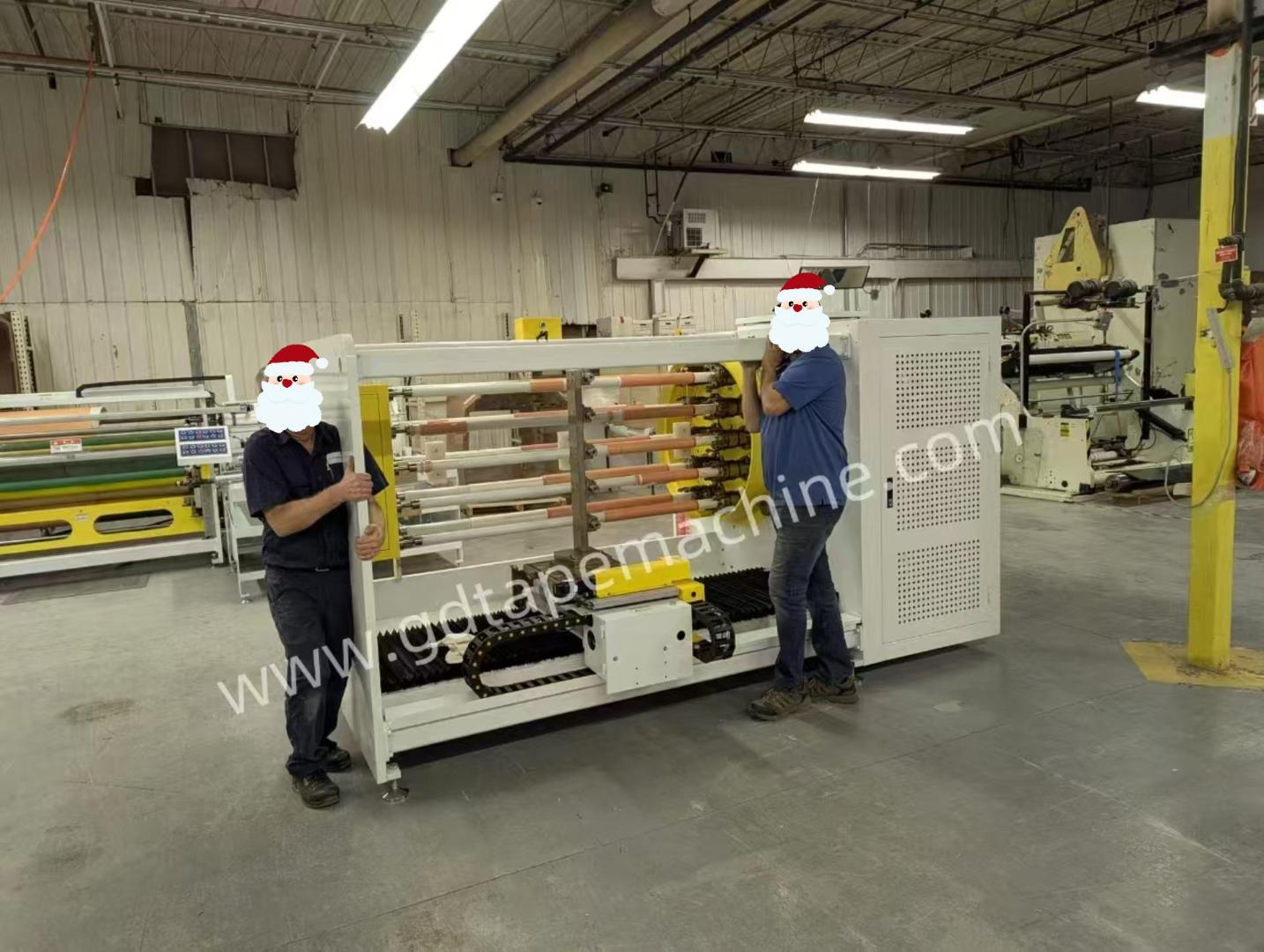

Medical Tape Production Upgrade in Mexico

1.Background & Requirements

A medical tape manufacturer in Mexico sought to upgrade their production line to meet rigorous standards: a core diameter of 50 mm, a minimum slitting width of 6 mm, and high stability and precision during both cutting and rewinding stages. Their previous equipment failed to deliver consistent precision, had high waste, and frequent core / material changes.

2.Solution Provided

We supplied two key machines:

• Fully Automatic Medical Tape Rewinding Machine

• Ten-Shaft Medical Tape Cutting Machine (GD-710)

Using the customer's raw material samples, we conducted extensive pre-production testing. During factory tuning, we optimized tension control and slitting precision to meet the required 6 mm minimum cut width and 50 mm core size. After manufacturing, we delivered, installed, and commissioned the machines at the customer's facility in Mexico.

Results & Feedback

• The cutting machine achieved the 6 mm minimum slitting width with clean edges and consistent accuracy.

• The rewinder produced rolls with stable quality across runs.

• Production efficiency increased noticeably, with reduced waste.

• The customer expressed high satisfaction with both the machines' performance and our post-delivery support. The combination of GD-710 cutting and rewinding solutions significantly improved their production workflow and product quality.

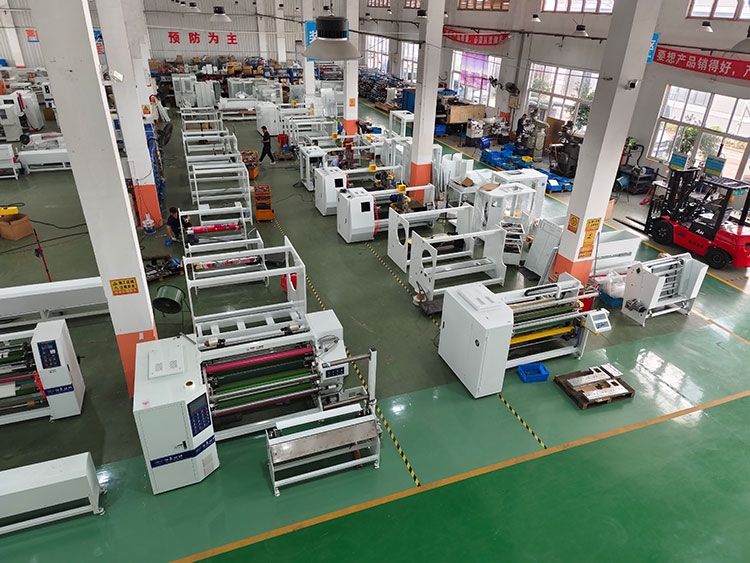

Company Strength

Shijiazhuang Goodi Trade Co., Ltd

• 20+ years experience in adhesive tape machinery.

• Exported to multiple countries worldwide.

• Comprehensive after-sales service: installation, training, spare parts, warranty.

• we offer you a solution that integrates perfectly into your production process
