GD-801 Fully automatic adhesive tape rewinding machine

The GD-801 is a fully automatic tape rewinding machine designed for rewinding jumbo adhesive rolls into small rolls. Equipped with automatic core feeding and unloading, tape cutting, labeling, and tension control systems, it is ideal for BOPP tape, foam tape, double-sided tape, masking tape, and more.

Inquire Now Next Product

Features

Introduction:

This fully automatic tape rewinding machine designed for rewinding jumbo adhesive rolls into small rolls which don't change the roll width.Equipped with automatic core feeding and unloading, tape cutting, labeling, and tension control systems, it is ideal for BOPP tape, foam tape, double-sided tape, masking tape, and more.

Features:

1.Automatic paper core feeding and unloading roll function.

2.Automatic cutting tape system.

3.Automatic label posting system.

4.Automatic tension control system for unwinding and rewinding.

Fully automatic rewinding machine, suitable for high speed rewinding BOPP packing tape, masking tape, duct tape, double-sided tape, foam tape, aluminum foil tape, etc.

Specification:

Machine width	1.3M
Paper core diameter	76mm × 1000mm
Max peeling diameter	Core diameter 76mm, diameter 600mm
Max rewinding tape diameter	120mm
Max rewinding speed	260m/min
Machine dimensions (1.3m)	4450×3300×1500mm
Net weight	About 2500KG

Details:

Customer Case: Medical Tape Production Upgrade in Mexico

1.Background & Requirements

A medical tape manufacturer in Mexico needed high-precision, stable equipment to meet strict standards. Their key specifications included a 50 mm core diameter and a minimum cutting width of 6 mm. They required both rewinding and cutting stages to maintain outstanding precision and stability.

2.Solution Provided

We customized and delivered two essential machines to the customer:

GD-801 Fully Automatic Medical Tape Rewinding Machine

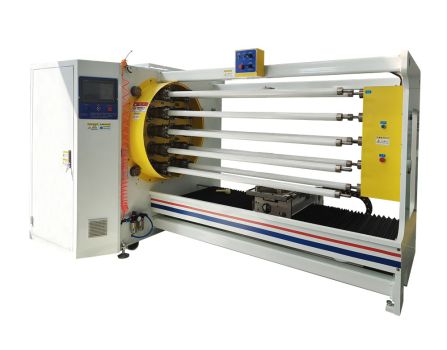

Ten-Shaft Medical Tape Cutting Machine

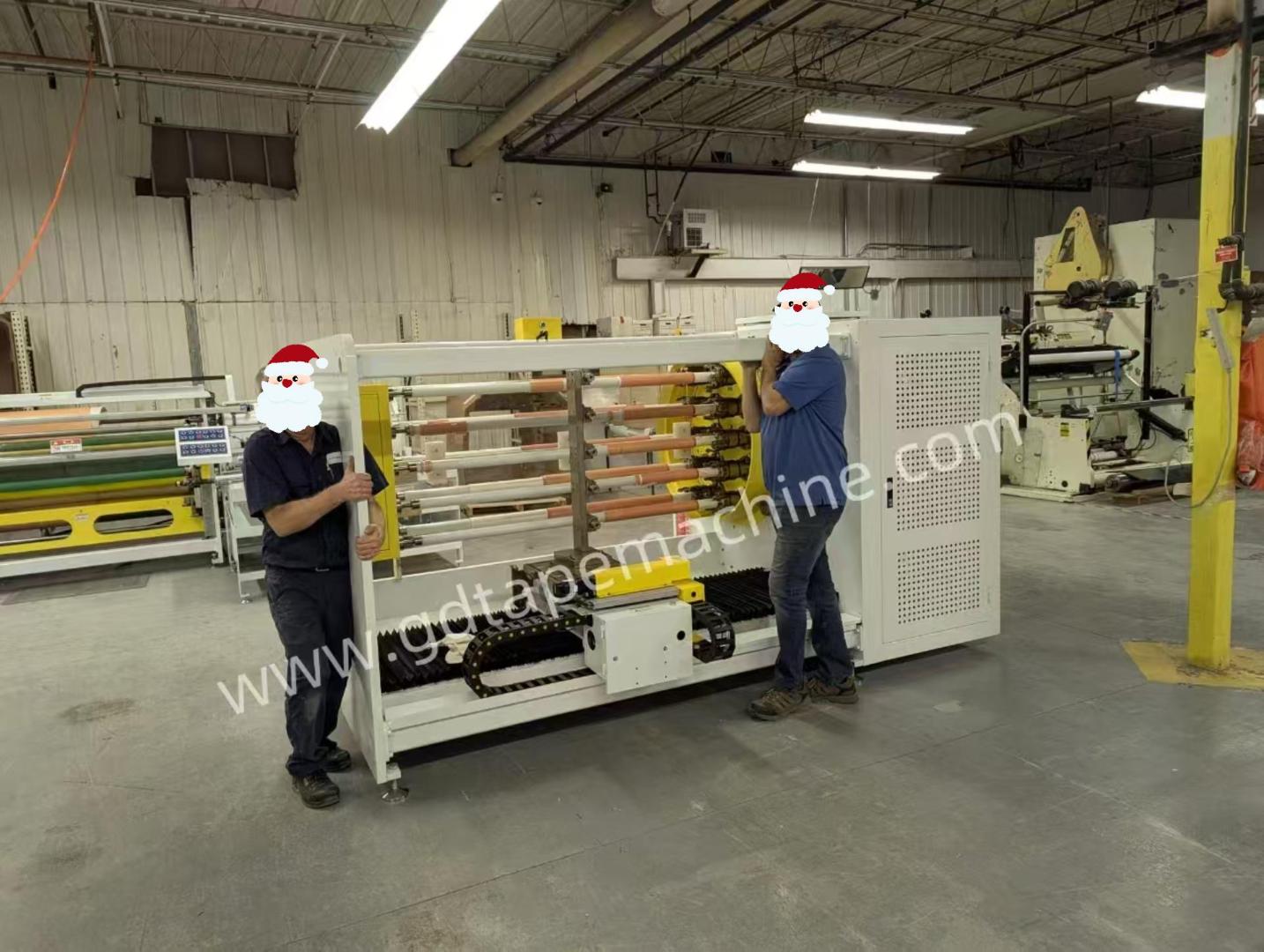

Before production, we conducted sample testing using the customer's raw material, adjusted machine parameters to meet exact rewinding and cutting precision. During manufacturing, iterative tuning addressed challenges in tension control and cutting edge quality. After delivery, onsite installation and final commissioning ensured the machines operate correctly in the customer's factory environment.

GD-801 Fully automatic adhesive tape rewinding machine

3.Results & Feedback

The rewinding machine delivered stable performance and greatly improved throughput compared to their previous setup.

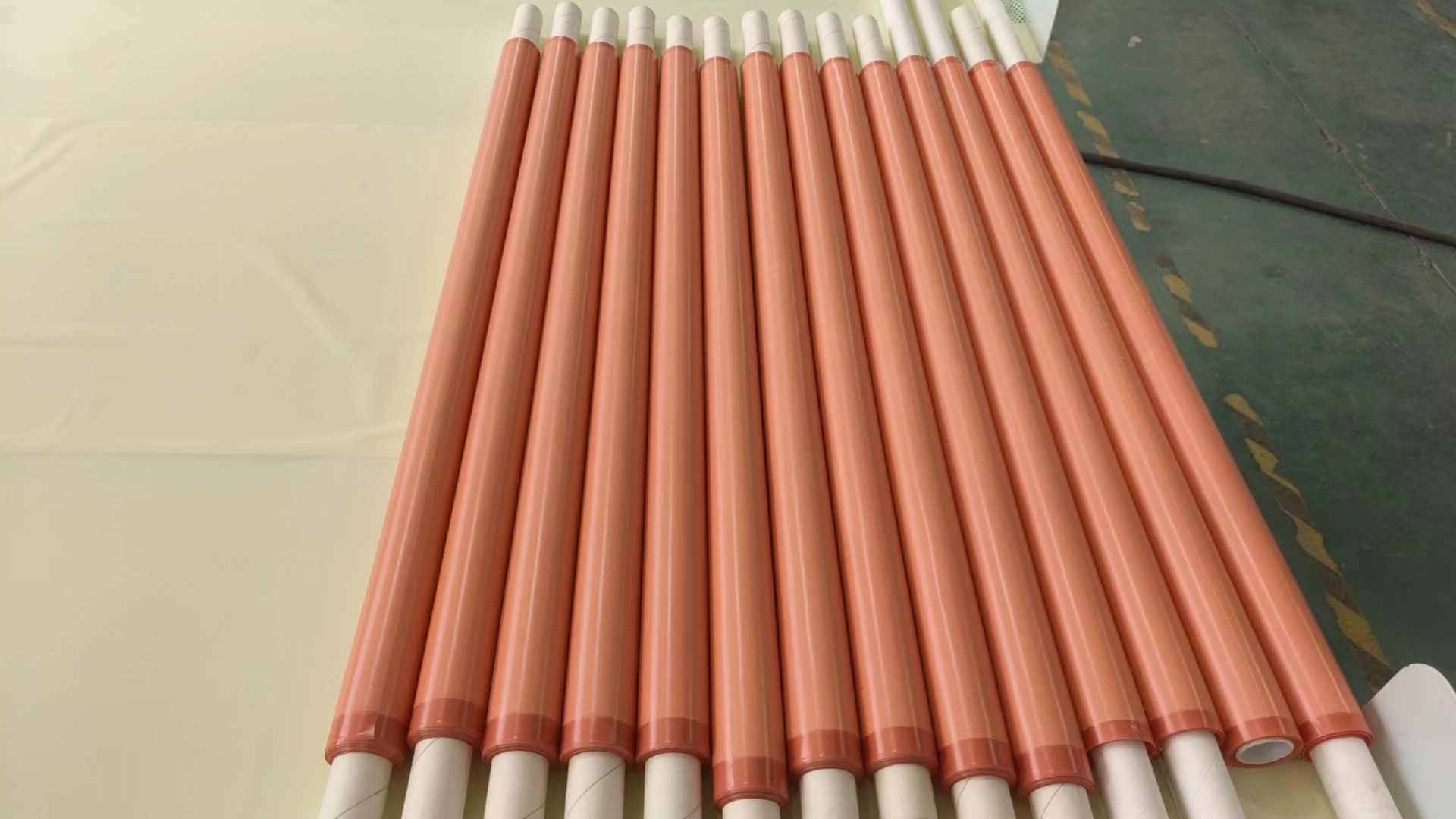

Cutting machine achieved the requested 6 mm minimum width with clean cut edges and minimal error.
The customer praised our after-sales support and responsive technical service.
Overall, production efficiency increased, material waste declined, and product consistency was significantly enhanced.
